RELE DE POTENCIA FINDER SERIE 56
Tipo 56.32
— 2 contactos conmutados 12 A
Tipo 56.34
— 4 contactos conmutados 12 A
• Bobinas AC y DC
• Pulsador de prueba enclavable e indicador mecánico en todos los tipos de 2 y 4 contactos conmutados
• LED y protección CEM interna opcional
• Zócalos serie 96 para montaje en circuito impreso o en carril de 35 mm
- Módulos de señalización de bobina y supresión CEM serie 99 y Módulos temporizados 86.30 opcionales
• Adaptadores de montaje alternativo opcionales
• UL Listing (combinaciones relé/zócalo)
• Contactos sin cadmio
• Materiales de contacto opcionales
Descargue la Ficha técnica AQUÍ: https://cdn.findernet.com/app/uploads/S56ES.pdf
CARACTERISTICAS DE LOS CONTACTOS | Unidad | 56.34 |
Marca | FINDER | |
Configuración de los Contactos | 4 inversores | |
Corriente nominal / max corriente instantánea | A | 12/20 |
Tensión nominal / máxima tensión de conmutación | V CA | 250/400 |
Carga Nominal en AC1 | VA | 3000 |
Carga Nominal en AC15 (230 V AC) | VA | 700 |
Motor Monofásico (230V AC) | KW | 0,55 |
Capacidad de ruputura en DC1: 30/110/220V | A | 12/0,5/0,25 |
Carga Mínima Conmutable | mW (V/mA) | 500(10/5) |
Material Estándar de los Contactos | AgNi | |
CARACTERISTICAS DE LA BOBINA | ||
Tensión nominal de Alimentación (Un) | V AC (50/60Hz) | 6,12,24,48,60,110,125,230,240 |
VDC | 6,12,24,48,60,110,125,220 | |
Potencia nominal AC/DC | VA(50Hz)/W | 2/1,3 |
Campo de funcionamiento | AC | (0,8…1,1)Un |
DC | (0,8…1,1)Un | |
Tensión de retención (mantenimiento) | AC/DC | 0,8/0,5Un |
Tensión de Desconexión | AC/DC | 0,2/0,1Un |
CARACTERISTICAS GENERALES | ||
Vida mecánica AC/DC | ciclos | 20.106/50.106 |
Vida eléctrica con carga nominal AC1 | ciclos | 100.10 3 |
Tiempo de respuesta Conexión / Desconexión | ms | 9/3 |
Aislamiento entre bobinas y contactos (1,2/50us) | KV | 5 |
Rigidez Dieléctrica entre contactos abiertos | V AC | 1000 |
Temperatura Ambiente | ºC | -40…+70ºC |
Categoría de la protección | RT | I |

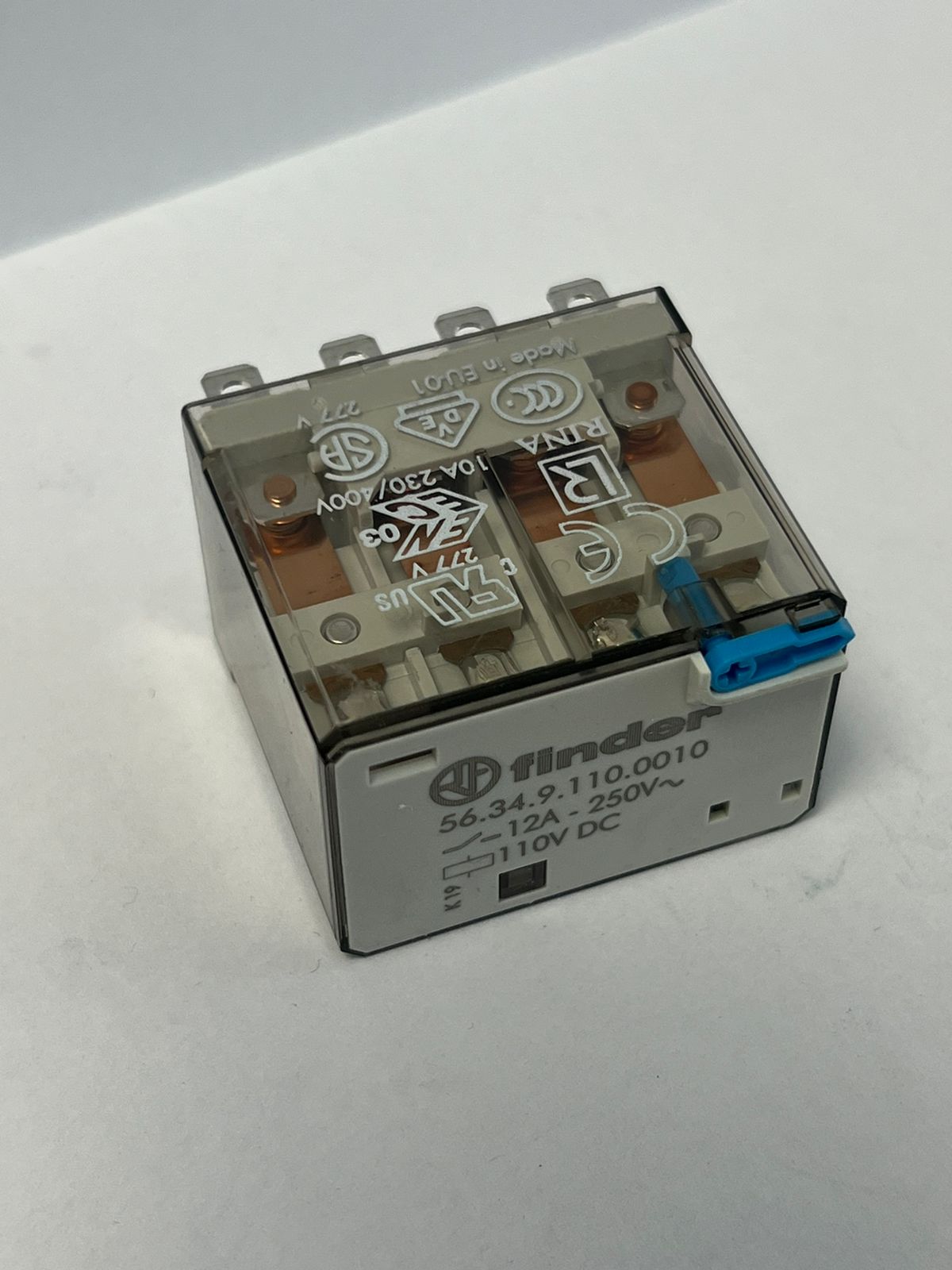

Código: 56.34.9.110.0010
SKU: 563491100010
