Descripción
RELE INDUSTRIAL FINDER SERIE 60
Tipo 60.12
– 2 contactos, 10 A Octal
Tipo 60.13
– 3 contactos, 10 A Undecal
- 2 o 3 contactos conmutados
- Contactos sin Cadmio (variante preferente)
- Bobina AC o DC
- UL Listing (combinaciones rele/zócalo)
- Materiales de contacto opcionales
- Pulsador de prueba con indicador mecánico
- Zócalos serie 90
- módulos de señalización y protección CEM
- módulos temporizados serie 86
- Patente europea fabricación Italiana
Descargue la Ficha técnica AQUÍ: https://cdn.findernet.com/app/uploads/S60ES.pdf
CARACTERISTICAS DE LOS CONTACTOS | Unidad | 60.12 |
Marca | FINDER | |
Configuración de los Contactos | 2 inversores | |
Corriente nominal / max corriente instantánea | A | 10/20 |
Tensión nominal / máxima tensión de conmutación | V CA | 250/400 |
Carga Nominal en AC1 | VA | 2500 |
Carga Nominal en AC15 (230 V AC) | VA | 500 |
Motor Monofásico (230V AC) | KW | 0,37 |
Capacidad de ruputura en DC1: 30/110/220V | A | 10/0,4/0,15 |
Carga Mínima Conmutable | mW (V/mA) | 500(10/5) |
Material Estándar de los Contactos | AgNi | |
CARACTERISTICAS DE LA BOBINA | ||
Tensión nominal de Alimentación (Un) | V AC (50/60Hz) | 6,12,24,48,60,110,120,230,240 |
VDC | 6,12,24,48,60,110,125,220 | |
Potencia nominal AC/DC | VA(50Hz)/W | 2,2/1,3 |
Campo de funcionamiento | AC | (0,8…1,1)Un |
DC | (0,8…1,1)Un | |
Tensión de retención (mantenimiento) | AC/DC | 0,8/0,5Un |
Tensión de Desconexión | AC/DC | 0,2/0,1Un |
CARACTERISTICAS GENERALES | ||
Vida mecánica AC/DC | ciclos | 20.106/50.106 |
Vida eléctrica con carga nominal AC1 | ciclos | 200.10 3 |
Tiempo de respuesta Conexión / Desconexión | ms | 11/14 |
Aislamiento entre bobinas y contactos (1,2/50us) | KV | 4 |
Rigidez Dieléctrica entre contactos abiertos | V AC | 1000 |
Temperatura Ambiente | ºC | -40…+70ºC |
Categoría de la protección | RT | I |

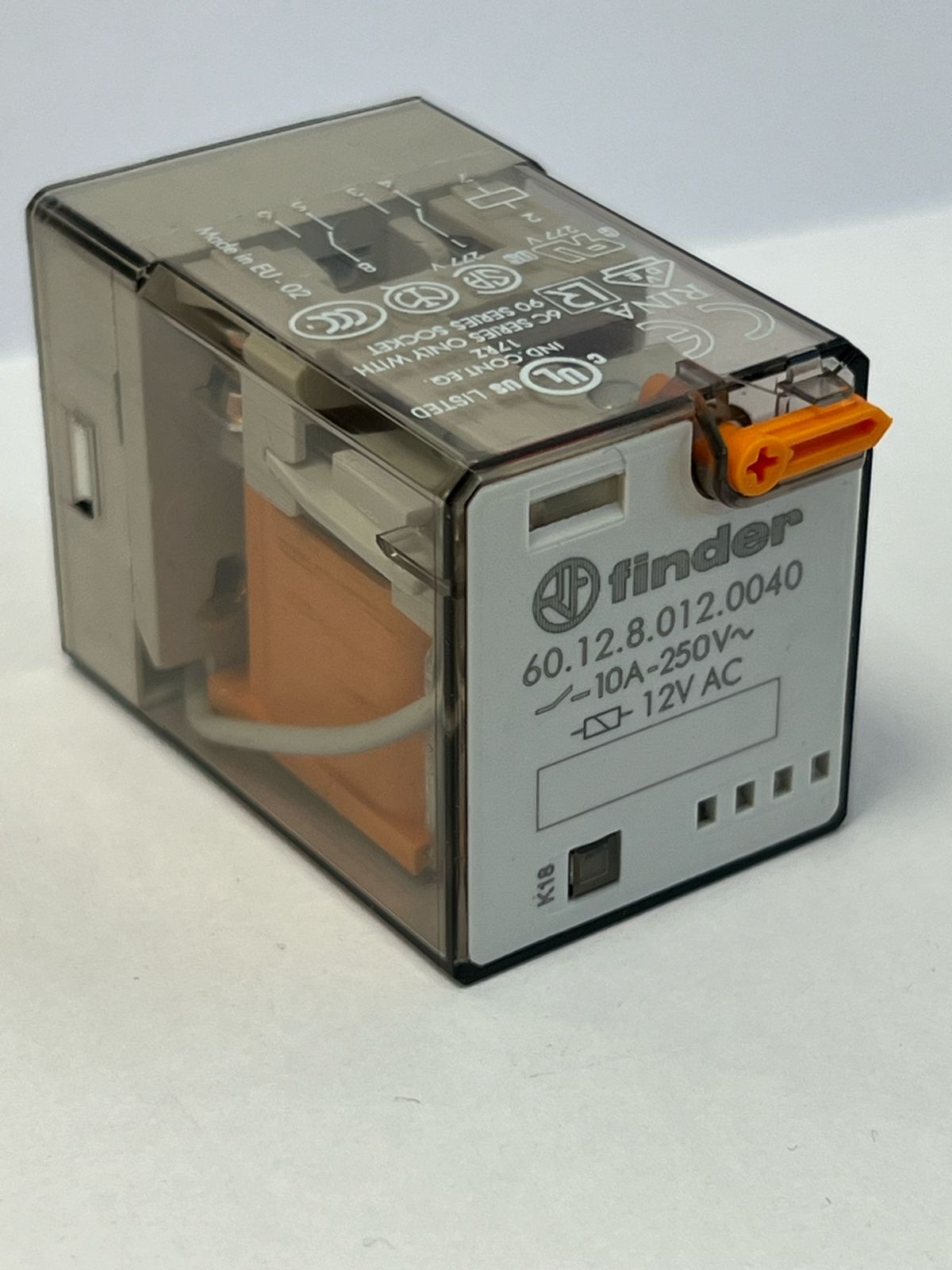

Código: 60.12.8.012.0040
SKU: 601280120040
