Descripción

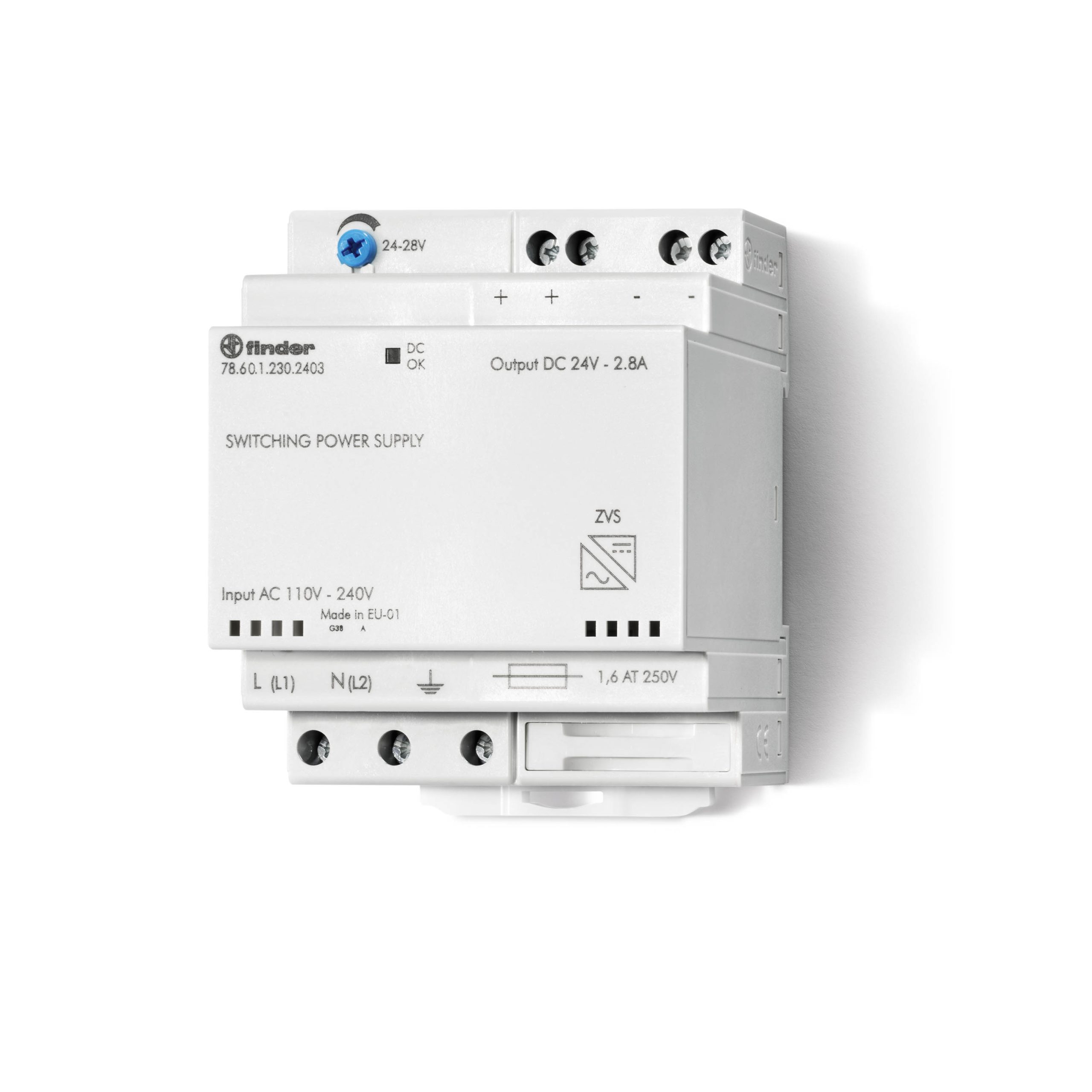

FUENTES DE ALIMENTACIÓN CONMUTADAS FINDER SERIE 78
Características:
- Alta eficiencia (hasta 91%) y bajo consumo en stand-by (<0.4 W)
- Pequeñas dimensiones: 70 mm (4 módulos) de ancho, 61 mm de profundidad
- Protección térmica interna, con deconexión de la salida
- Protección contra cortocircuito: modo Hipo (reinicio automático) Protección contra sobretensiones: varistor
- Fusible de entrada: fácilmente reemplazable y equipada con fusible de repuesto
- Cumple con las normas EN 60950-1 y EN 61204-3
Tipo 78.60
– Salida 24 V DC, 60 W
– Diseñada para sistemas SELV (EN 60950)
– Adecuada para baterías de respaldo
• Alta eficacia (hasta 91%)
• Bajo consumo en espera < 0.3 W
• Protección térmica: interna, con desconexión de la tensión de salida Vout
• Protección contra cortocircuito: modo hiccup (restablecimiento automático)
• Protección contra sobretensiones: Varistor
• Tipología Flyback (con convertidor de retroceso)
• Tecnología de conexión paso por cero
• Acorde con EN 60950-1 y EN 61204-3
• Conexión en paralelo para redundancia automática: con diodos OR-IN
• Conexiones dual y en serie permitidas
• Dimensiones pequeñas: 70 mm (4 módulos) ancho, 61 mm alto
• Montaje en carril de 35 mm (EN 60715)
Corriente (A): 2,8
Potencia (kW): 60W
Marca: Finder
Código: 78.60.1.230.2403
SKU: 786012302403
