Descripción
ÚNICO EN EL MERCADO! GUIAS Y TUTORIALE8A.04.9.024.8320 CONTROLADOR LOGICO PROGRAMABLE AVANZADOS AQUI
FINDER OPTA es el primer PROGRAMMABLE LOGIC RELAY.
Aprovechando la gran capacidad de fabricación de Finder y la plataforma innovadora de ARDUINO, ha resultado en una gama de productos verdaderamente única.
Una gama sencilla y simple de RELES PROGRAMABLES LOGICOS perfecta para crear simples aplicaciones en automatizaciones industriales, OEM y automatización de edificios.
Programable tanto con el lenguaje tradicional (Ladder) como con un lenguaje innovador y de código abierto (IDE / ARDUINO).
Fabricado in ITALY por Finder, combina su experiencia industrial con la innovación tecnológica de ARDUINO, para un producto único en el mercado.
OPTA
Una gama de PROGRAMMABLE LOGIC RELAYS (CONTROLADOR LOGICO PROGRAMABLE) simples y autónomos, perfectos para crear aplicaciones sencillas en los sectores de la automatización industrial, OEM y automatización de edificios.
Programable tanto con un lenguaje tradicional IEC 61131-3 (Ladder, FBD, …) como con un lenguaje innovador y de código abierto (IDE/ARDUINO).
Fabricado en ITALIA por Finder, combina la experiencia industrial de Finder con la innovación Tecnológica de ARDUINO, creando un producto verdaderamente único.
POTENTE
El potente procesador de doble núcleo Cortex® M7+M4 permite un gran número de operaciones Informáticas en tiempo real. Ideal para aplicaciones de mantenimiento predictivo.
SEGURO
Gracias a un crypto chip de seguridad integrado de altas prestaciones para gestionar el cifrado y las claves de datos en todo tipo de aplicaciones.
ABIERTO
Programable con software de CÓDIGO ABIERTO, SIN LICENCIA (IDE ARDUINO) así como con lenguajes IEC 61131-3 (LADDER, FBD, etc.).
SENCILLO
Diseñado para simplificar la interacción entre los dispositivos electrónicos y el mundo físico, potenciando todos tus proyectos.

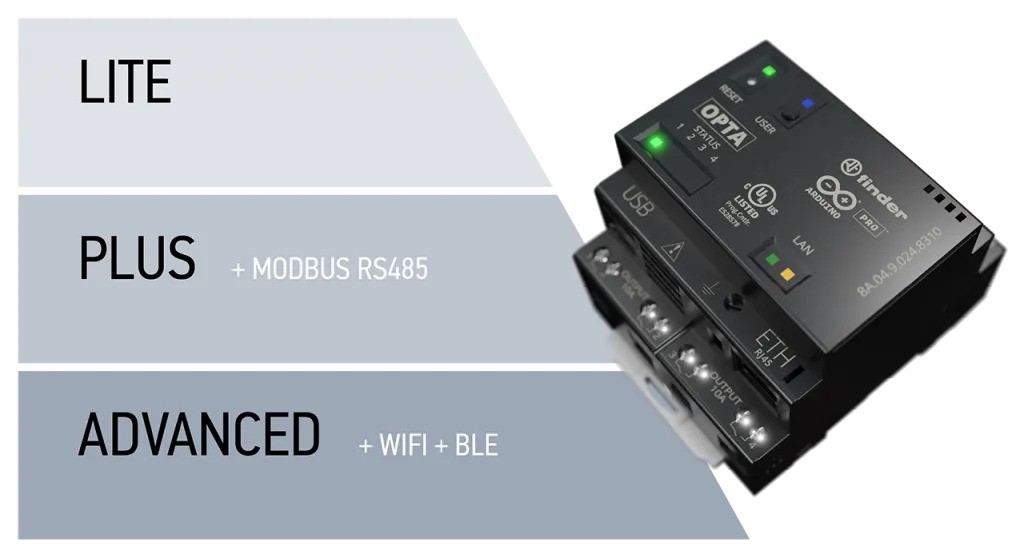

GAMA DE MODELOS
Tipo 8A.04.9.024.8300
- Alimentación 12…24 V DC
- 8 Entradas Digitales/Analógicas (0-10V)
- 4 relés de salida NA de 10 A
- USB (tipo C) puerto de Alta Velocidad para:
- Programación
- Registro de datos (mediante unidad de memoria)
- RJ45 para conexiones Ethernet o MODBUS TCP/IP

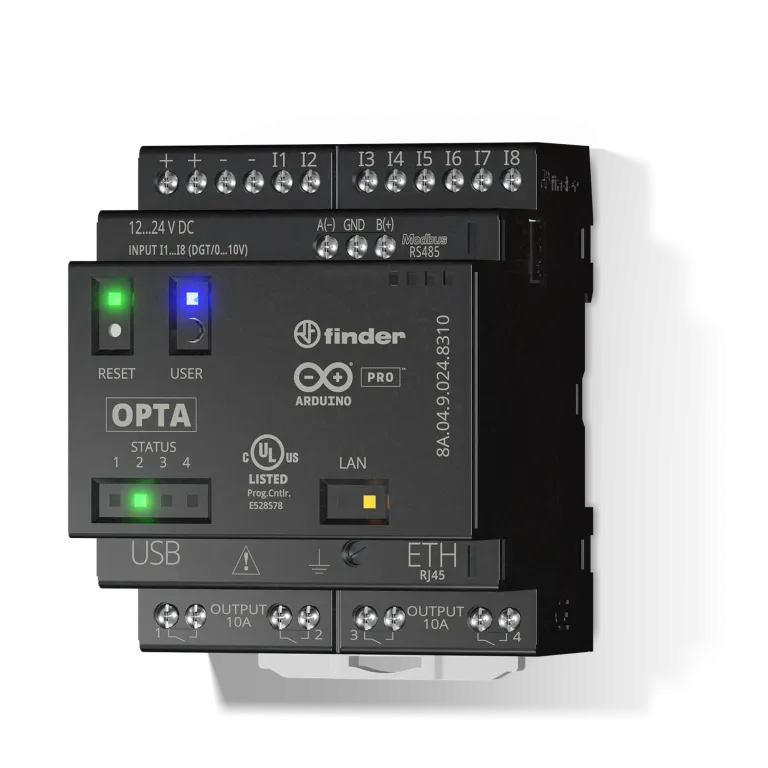

Tipo 8A.04.9.024.8310
- Alimentación 12…24 V DC
- 8 Entradas Digitales/Analógicas (0-10V)
- 4 relés de salida NA de 10 A
- USB (tipo C) puerto de Alta Velocidad para:
- Programación
- Registro de datos (mediante unidad de memoria)
- RJ45 para conexiones Ethernet o MODBUS TCP/IP
- Porta RS485 para conexiones MODUS RTU

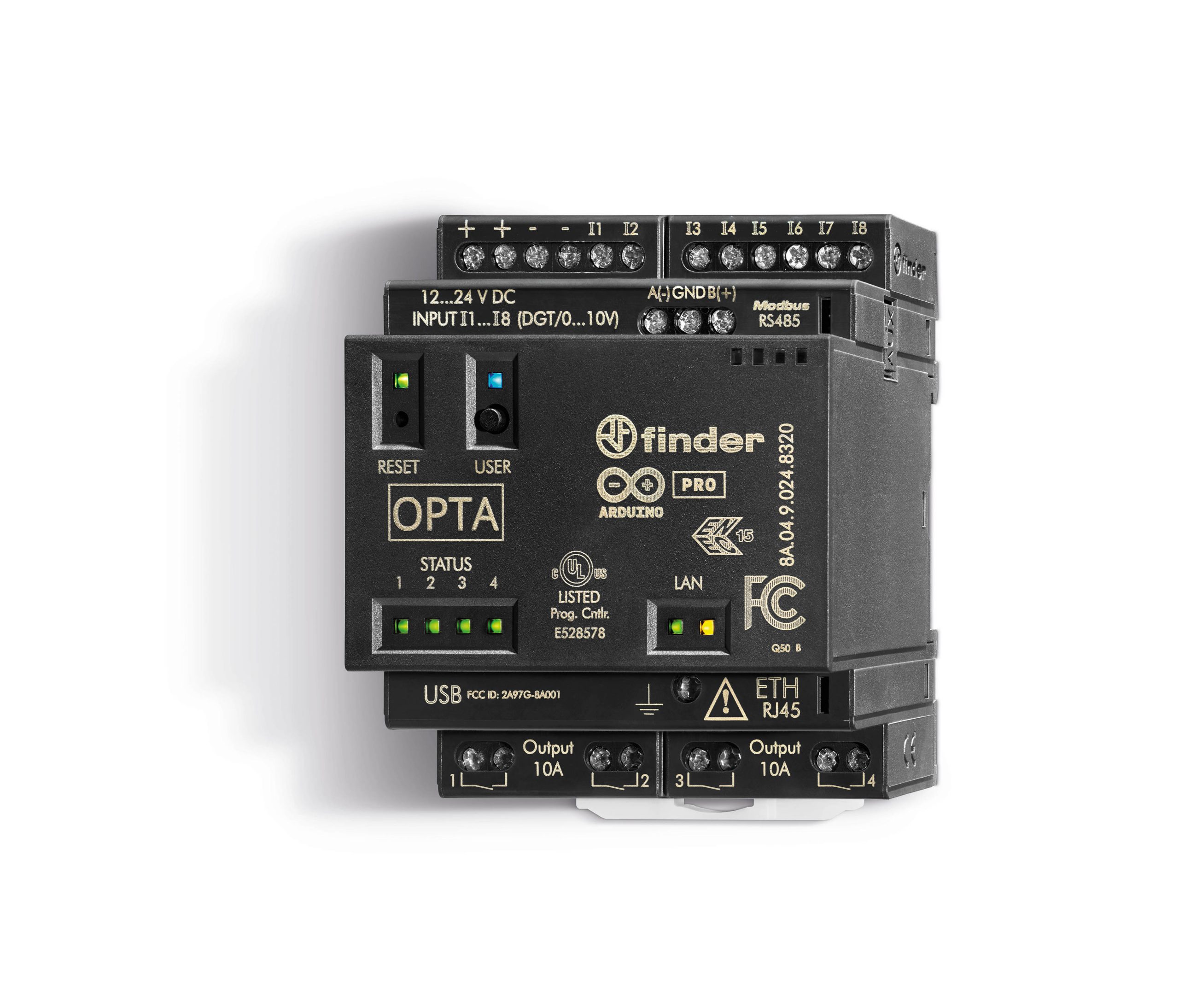

Tipo 8A.04.9.024.8320
- Alimentación 12…24 V DC
- 8 Entradas Digitales/Analógicas (0-10V)
- 4 relés de salida NA de 10 A
- USB (tipo C) puerto de Alta Velocidad para:
- Programación
- Registro de datos (mediante unidad de memoria)
- RJ45 para conexiones Ethernet o MODBUS TCP/IP
- Porta RS485 para conexiones MODUS RTU
- WIFI/BLE módulo integrado
CIRCUITO DE SALIDA | Unidad | 8A.04 |
Marca | FINDER | |
Configuración de los Contactos | 4NA | |
Corriente nominal/Máxima corriente instantánea A | A | 10/15 |
Tensión nominal/ Máx. tensión de conmutación |
VAC | 250/400 |
Carga nominal en AC1 | VA | 2500 |
Carga nominal en AC15 (230 V AC) | VA | 500 |
Capacidad de ruptura en DC1: 24/110/220 V | A | 10/0,3/0,12 |
Carga mínima conmutable | mW/(V/mA) | 300(5/5) |
Tiempo de conexión/desconexión | ms | 6/4 |
Material Estándar de los contactos | AgNi | |
CARACTERISTICAS DE ALIMENTACION | Unidad | |
Tensión nominal de Alimentación (Un) | VDC | 12…24 |
Potencia nominal | W | 0,6…2,2 |
Campo de funcionamiento | 10,2…27,6 | |
CIRCUITO DE ENTRADA | Unidad | |
Número de entradas | 8 (configurable) | |
Tipo | Digital/Analógico | |
Entrada analógica | V | 0…10 |
Resolución de la entrada analógica | Configurable por el usuario de 16 a 12 bits | |
Frecuencia de entrada | KhZ | <4 VDC / > 5.9 VDC |
Tensión de entrada señal 0/señal 1 | NPN/Sink | |
Compatibilidad de la entrada | Sí | |
Protección contra polaridad inversa | ||
CARACTERISTICAS GENERALES | Unidad | |
Lenguaje de programación | Arduino vía IDE, como opción IEC-61131-3 (LD – SFC – FBD – ST – IL) | |
Mínima señal de entrada | ms | 0,2 |
Vida útil eléctrica con carga nominal en AC1 ciclos | 100 · 103 | |
Temperatura ambiente °C | °C | –20…+55 |
Categoría de protección | IP 20 | |
Ficha técnica pdf AQUI https://cdn.findernet.com/app/uploads/S8AES.pdf
Código: 8A.04.9.024.8320
SKU: 8A0490248320
